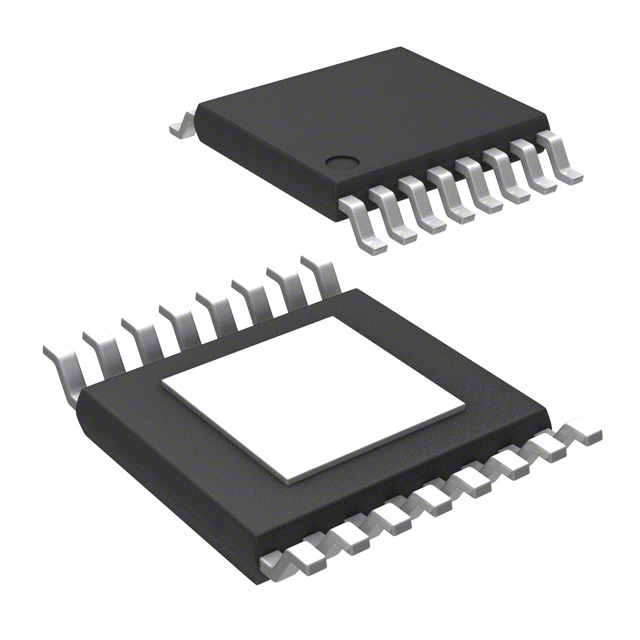

TPS7B7702QPWPRQ1 HTSSOP-16 Linear Dropout Regulator Dual Channel
Premium Products
TPS7B7702QPWPRQ1 HTSSOP-16 Linear Dropout Regulator Dual Channel
Brand Name :Texas Instruments
Model Number :TPS7B7702QPWPRQ1
Place of Origin :Malaysia
MOQ :1
Price :Contact us
Payment Terms :L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :Contact us
Delivery Time :In stock
Packaging Details :Standard / New / Original
Mounting Style :SMD/SMT
Output Voltage :1.5 V to 20 V
Output Current :300 mA
Number of Outputs :2 Output
Quiescent Current :18 uA
Contact Now
TPS7B7702QPWPRQ1 / HTSSOP-16 / LDO Voltage Regulators
The TPS7B770x-Q1 family of devices feature a single and dual, high-voltage low-dropout regulator (LDO) with current sensing, designed to operate with a wide input-voltage range from 4.5 V to 40 V (45-V load dump protection).
These devices provide power to the low-noise amplifiers of the active antenna through a coax cable with 300 mA per channel current. Each channel also provides an adjustable output voltage from 1.5 V to 20 V. These devices provide diagnostics through the current sense and error pins. To monitor the load current, a high-side current-sense circuitry provides a proportional analog output to the sensed load current. The accurate current sense allows detection of open, normal, and short-circuit conditions without the need for further calibration. Current sense can be multiplexed between channels and devices to save analog-to-digital converter (ADC) resources. Each channel also implements adjustable current limit with an external resistor.
An integrated reverse polarity diode eliminates the need for an external diode. These devices feature standard thermal shutdown, short-to-battery protection on the output, and reverse current protection. Each channel has internal inductive clamp protection on the output during inductive switch off.
These devices operate over a –40°C to +125°C ambient temperature range.
Product Attribute
Attribute Value
Texas Instruments
Product Category:
LDO Voltage Regulators
SMD/SMT
HTSSOP-16
1.5 V to 20 V
300 mA
2 Output
Positive
18 uA
4.5 V
40 V
73 dB
Adjustable
- 40 C
+ 125 C
350 mV
AEC-Q100
TPS7B7702-Q1
Reel
Cut Tape
MouseReel
Brand:
Texas Instruments
Dropout Voltage - Max:
500 mV
Line Regulation:
10 mV
Load Regulation:
20 mV
Moisture Sensitive:
Yes
Operating Supply Current:
600 uA
Operating Temperature Range:
- 4
Output Voltage Range:
1.5 V to 20 V
Product:
LDO Voltage Regulators
Product Type:
LDO Voltage Regulators
Factory Pack Quantity:
2000
Subcategory:
PMIC - Power Management ICs
Type:
Dual Channel Antenna LDO with Current Sense
Unit Weight:
0.004586 oz
